Downhole Tool Handling Dolly

A purpose-built handling dolly for safe transportation and lifting of long downhole tools weighing up to 1,000 kg into a lubricator

Reduced manual handling

Less physical strain and safer handling for personnel

The challenge

Handling long and heavy downhole tools in the field can be both physically demanding and difficult to control.

During transportation and lifting into a lubricator, personnel may be exposed to heavy manual handling, while valuable downhole equipment is at risk of impact or damage – particularly when operating on uneven or rough terrain.

A simple, robust solution was needed to improve both personnel safety and tool protection throughout the handling operation.

Our solution

Radical Technologies developed a purpose-built dolly designed specifically for handling long downhole tools in field conditions.

The dolly supports and stabilizes the tool during transportation and assists during the lifting operation into the lubricator, reducing the need for personnel to manually support and maneuver heavy equipment.

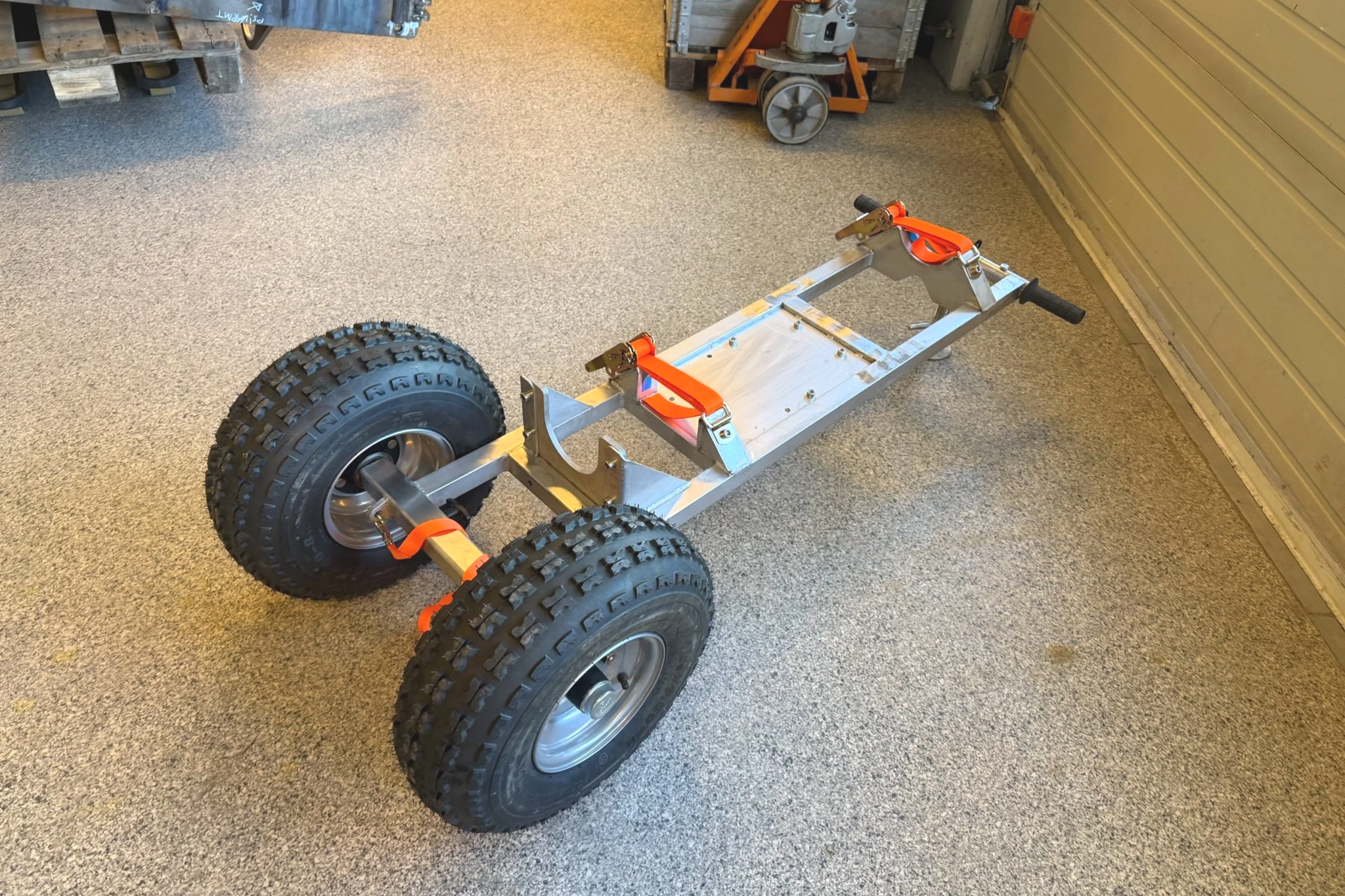

Large, heavy-duty all-terrain wheels allow the dolly to be moved across rough and uneven surfaces while keeping the tool supported and under control.

The result is a simple and robust mechanical solution that makes a demanding field operation safer, easier and less likely to damage valuable equipment.

Our scope

• Concept development

• Mechanical engineering

• Field equipment design

• Load assessment

• Detailed design

• Manufacturing documentation

• Fabrication

• Assembly

• Testing

Engineering for safer operations

Not every engineering challenge requires a complex machine. In this case, understanding the actual field operation was key. By designing the equipment around how long and heavy downhole tools are transported, positioned and lifted, Radical Technologies created a practical solution that improves safety for personnel while protecting the equipment being handled.
